BD8M — MEDIDOR LASER 3 EN 1 CINTA METRICA FLEXIBLE (5M) LASER LINEAS CRUZADAS Y LASER DE DISTANCIA (40M)

BD8M — MEDIDOR LASER 3 EN 1 CINTA METRICA FLEXIBLE (5M) LASER LINEAS CRUZADAS Y LASER DE DISTANCIA (40M)

MXN $ 1,209.16 MXN $ 1,209.16 1209.16 MXN

MXN $ 1,042.38

Esta combinación no existe.

Agregar al carrito Comprar ahora

Actualizado a 21/11/2024 en la página web.

Términos y condiciones
Garantía de devolución de 30 días
Envío: Este producto es de importación como muchos otros, su tiempo de entrega es de 4 a 5 semanas a partir de que se genera el pedido.

BD8M LASER DISTANCE MEASURING DEVICE

3-in-1 multifunction measuring meter with integrated distance laser, cross-line laser and retractable tape measure

Distance meter, tape measure and cross line laser in one device

The compact multifunction measuring meter BD8M combines the functionality of three useful measuring instruments at the same time (laser distance meter, cross line laser, tape measure) and hence is recommended as mandatory equipment for both ambitious do-it-yourself enthusiasts and industrial users (e.g. architects, engineers, interior designers, craftsmen).

Easy measurement of distances, surfaces and circumferences

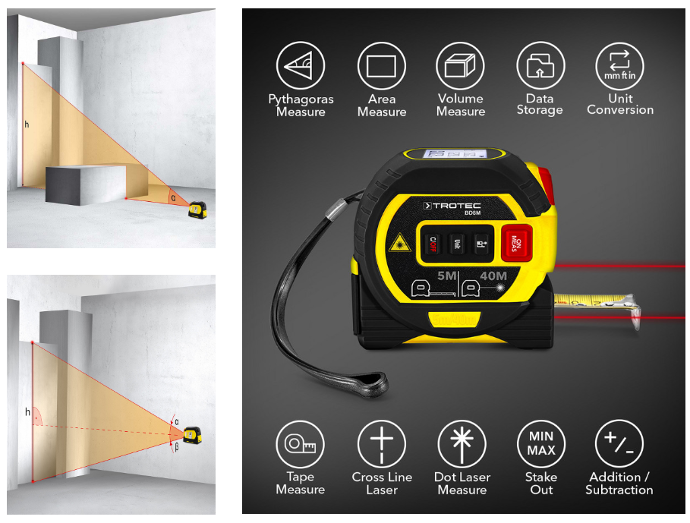

As a classic laser distance meter, the BD8M easily measures distances up to 40 m, surfaces as well as volumes in interior spaces. To ensure a maximum profitable use of material for renovation work, the precise calculation of floor, ceiling or wall surfaces is therefore a cinch for the laser distance meter. Furthermore, a Pythagoras function is integrated to carry out indirect laser measurements (e.g. measuring the height of walls or furniture).

Cross line laser and tape measure included

With this functionality, which would already mark the limit of many laser distance measuring devices’ application options, however, the potential of the BD8M is still far from exhausted. If required, an integrated cross line laser projects intensely bright laser lines on substrates, for instance to perfectly align drill holes, pictures, tiles, strips of wallpaper, wall cabinets or shelves. An integrated tape measure (5 m) with a practical retracting button, ideally suited for manual measurements in places that are difficult to access make the BD8M the unbeaten surveying professional in the craftwork and DIY sector.

The outstanding features of the measuring device, which weighs only 295 g, are completed by a practical hand strap and a belt clip integrated in the device housing.

With the BD8M, measurements and calculations of floor/wall surfaces and room volumes can be carried out especially smoothly. An integrated cross-line laser additionally facilitates the alignment of objects and drill holes.

Multifunctional professional measurement technology at a DIY product price

Thanks to its extensive measuring range of 40 m (laser measurement) and the integrated 5-metre tape measure, the 3-in-1 multifunction measuring meter BD8M is suited for almost any measurement tasks in the fields of DIY, hobby and craftwork.

Designed for rough applications on construction sites

Its robust housing makes the BD8M suitable for withstanding even adverse conditions on construction sites. A circumferential rubber coating in the form of slip-resistant softgrip inserts provides for a safe grip in all measuring positions and furthermore ensures enhanced fall protection.

Clear visibility of precise measurement results

The data determined via laser measurement are shown on the backlit multi-line display in clearly readable fashion and are additionally saved in the internal data memory (max. 20 measurements). Addition and subtraction of the measurement data can be carried out as well as continuous measurements with MIN/MAX function (stake-out function).

Follows your thoughts and switches off automatically when it’s not used

For a maximum operating time, the BD8M is provided with an intelligent automatic switch-off function that switches off the laser after 30 seconds and the whole device after 2 minutes fully automatically. This intelligent power saving function is especially helpful in the hectic daily construction site routine and makes the BD8M a cash cow among the distance measuring devices. The batteries required for operation (2 x 1.5 V AAA batteries) are already included in the scope of delivery.

User Manual:

Special equipment features of the BD8M

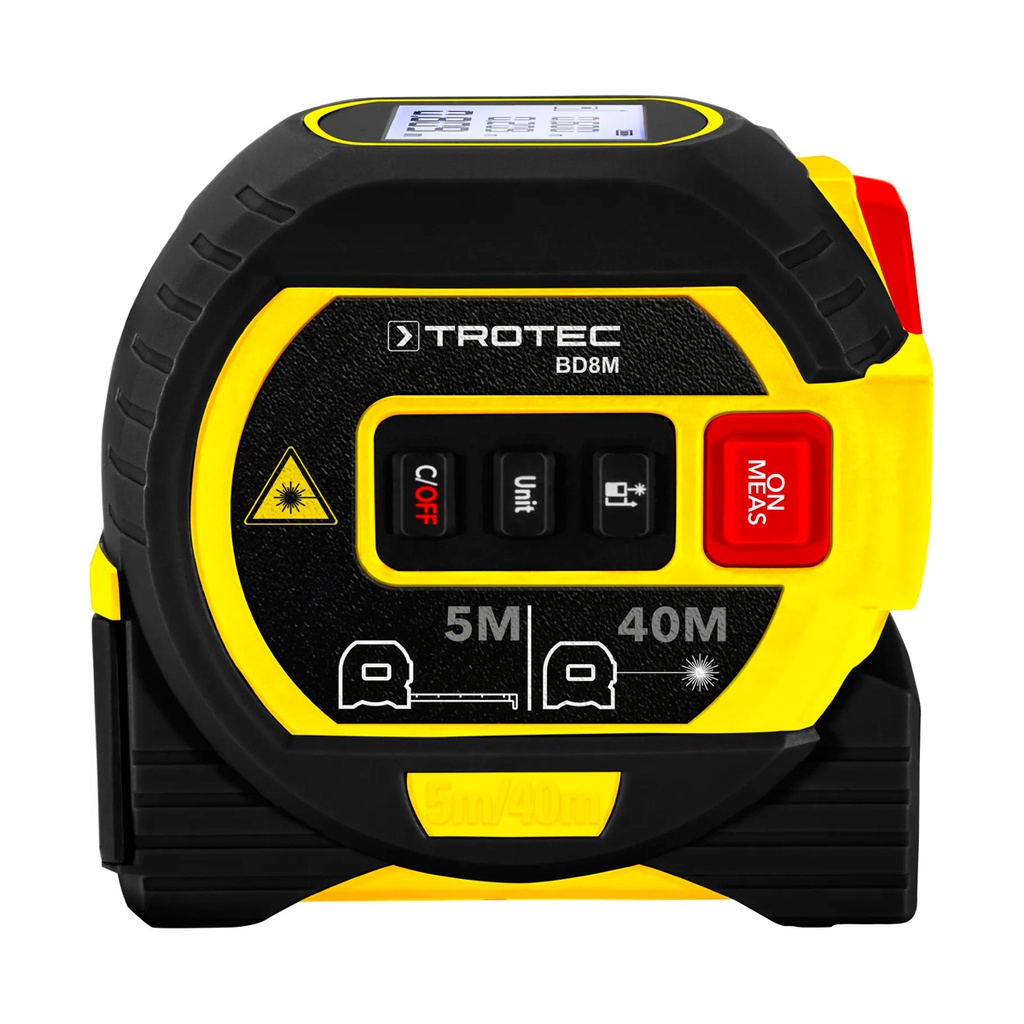

BD8M – dimensions — The laser measurement function of the compact 3-in-1 multifunction measuring meter allows to easily and quickly determine the exact measure of distances, surfaces and volumes. Non-slip softgrip inserts provide for a secure grip.

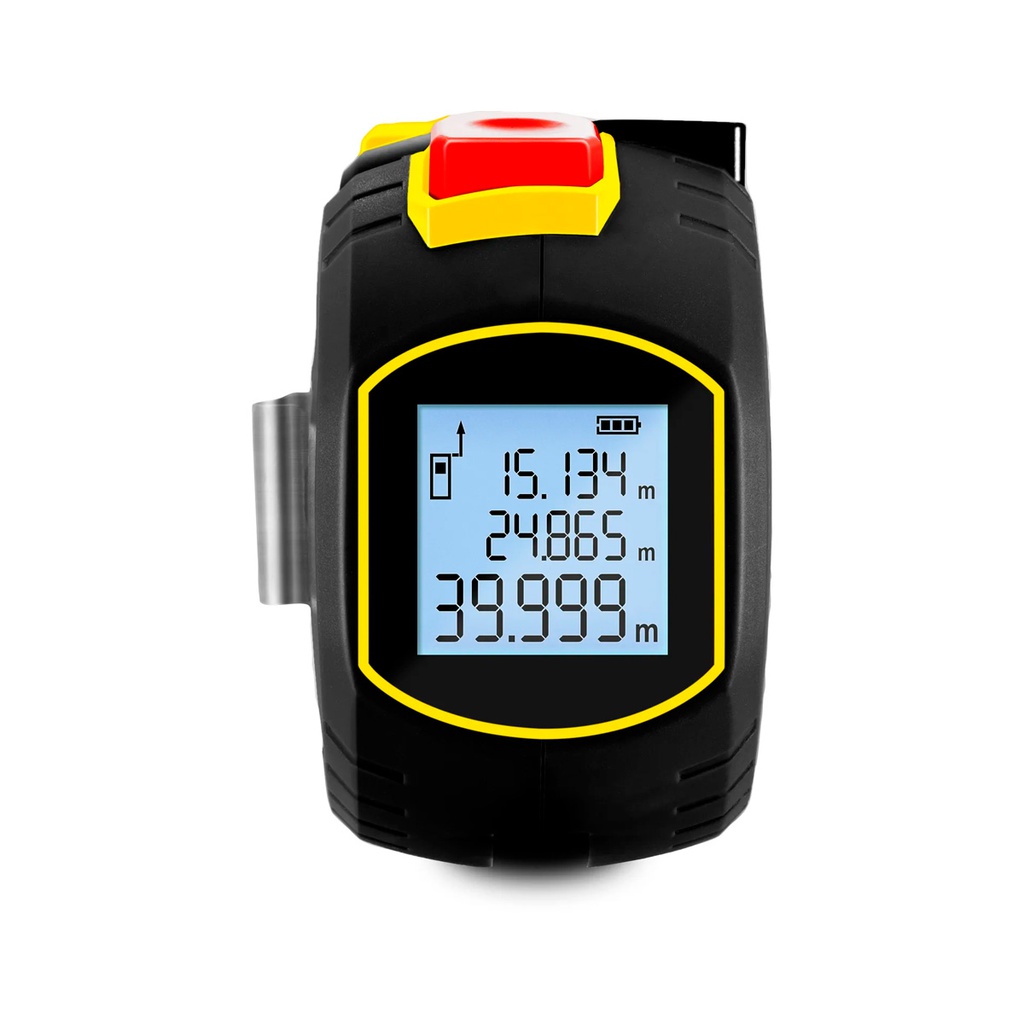

BD8M – display — The measurement data determined are shown on the backlit display in clearly readable fashion and are additionally saved in the internal data memory (max. 20 measurements).

BD8M – data memory — The measurement data determined are represented in a clearly readable fashion on the backlit display and additionally saved in the internal data memory (max. 20 measurements).

BD8M – robust ABS housing — Its robust ABS housing makes the BD8M suitable for withstanding even rough conditions on construction sites. A circumferential rubber coating with edge protectors ensures enhanced fall protection.

BD8M – belt clip — The outstanding features of the extremely lightweight measuring device are topped off by a practical hand strap and a belt clip integrated in the device housing. Always at hand when you need the BD8M.

BD8M – precise measurement results for perfect work results — Always the exact measure. Precise measurement results can be easily obtained with the laser distance measuring device. Intelligent function settings indicate to the device whether it is to be included into the distance measurement or not.

BD8M – making measurements and calculations of floor/wall surfaces and room volume a breeze — Always the exact measure. Precise measurement results can be easily obtained with the laser distance measuring device. Intelligent function settings show the device whether it is to be included into the distance measurement or not.

BD8M – auto-off & battery — For a maximum operating time, the BD8M is provided with an automatic switch-off function which switches off the laser after 30 seconds and the whole device after 2 minutes.

BD8M – tape measure — The 5 m tape measure with its practical retracting button allows for manual measurement in places that are difficult to access.

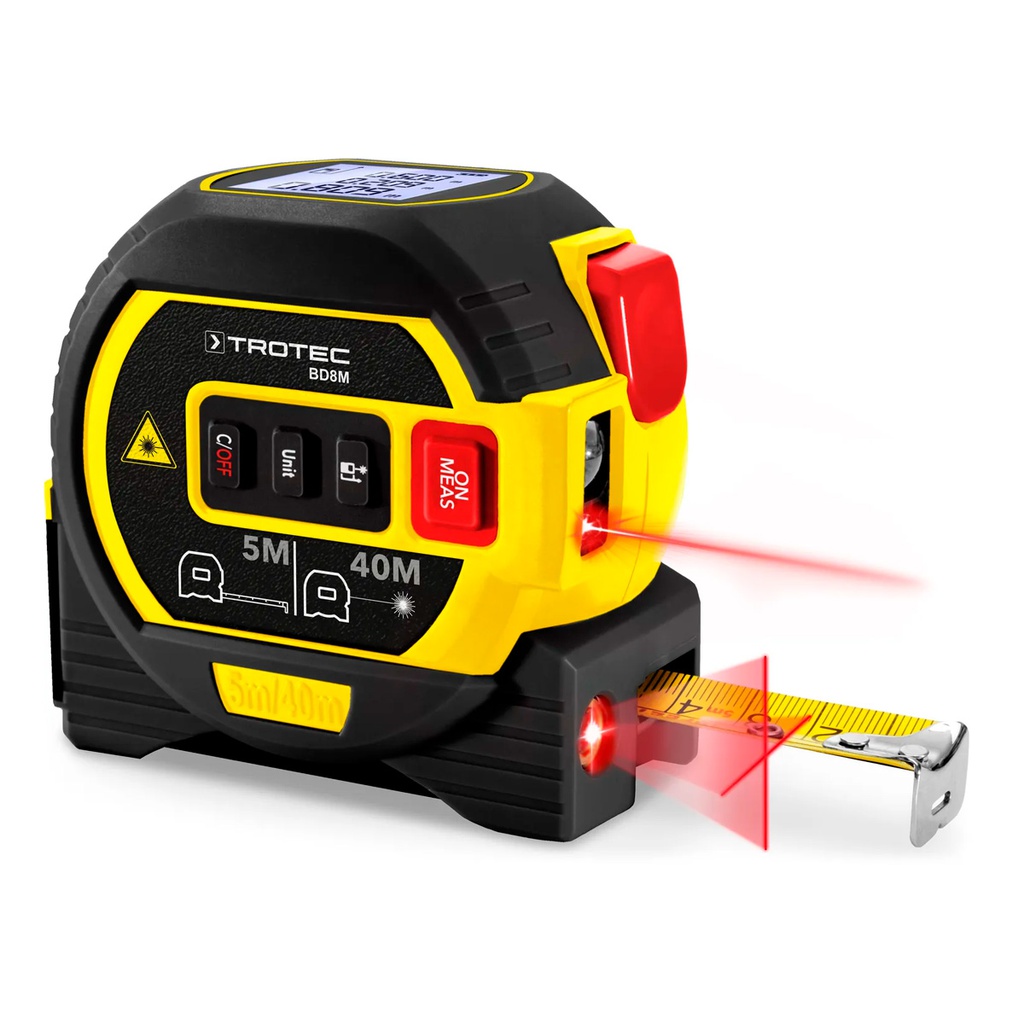

BD8M – cross line laser — The integrated cross line laser precisely transmits clearly visible lines on substrates at a distance of up to 10 metres.

BD8M – laser lines — As a classic laser distance meter, the BD8M easily measures distances up to 40 m, surfaces as well as volumes in interior spaces.

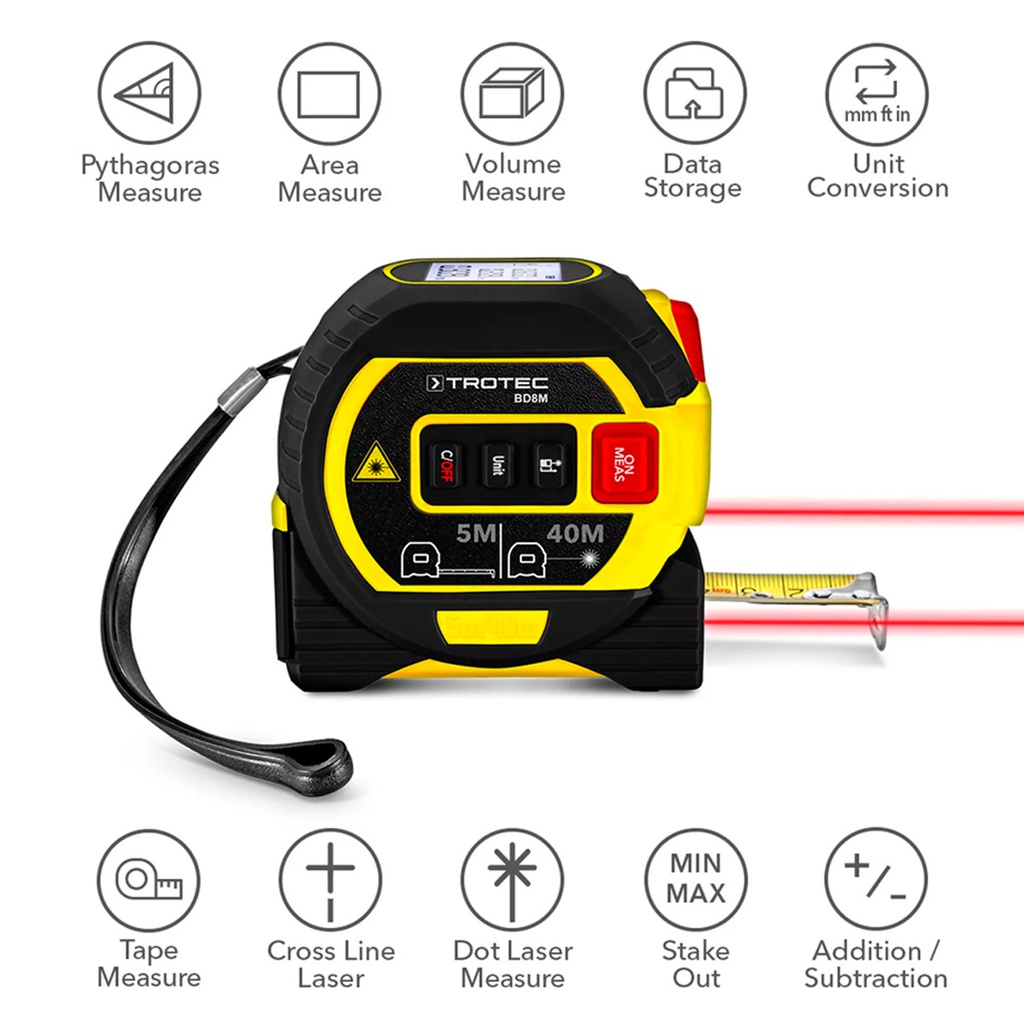

BD8M – functions — Wide range of functions: Thanks to the Pythagoras function, in addition to the measurement of distances, volumes and surfaces, it is equally possible to carry out addition and subtraction of the measurement data as well as continuous measurements with MIN/MAX function and indirect measurements.

3-in-1 laser distance measuring device with tape measure and cross line laser

BD8M – integrated tape measure — An integrated, 5 m measuring tape with practical retracting button is the ideal assistant for manual measurements, for instance of shelves, to determine the exact length that is required. Non-slip softgrip inserts in the measuring device provide for a secure grip in all measuring positions.

BD8M – distance laser — The BD8M records distances up to 40 metres, surfaces as well as volumes of interior spaces. With the integrated cross line laser, drill holes, pictures, tiles, etc. within a range of up to 10 metres can be aligned precisely. The perfect design of the robust and shockproof housing allows for the use in rough conditions on construction sites.

A few practical benefits:

0.05 m to 40 m laser distance measurement
Indirect distance and height or partial height calculation (3-point Pythagoras functions)
Precise measurement of distances, areas and volumes in seconds
Integrated cross line laser (10 m range)
Integrated measuring tape (5 m length)
Backlit multi-line display
Continuous measuring mode with MIN / MAX function
Addition and subtraction of measurement results
Automatic storage of the last 20 measured values
Robust construction for rough construction-site operations
Battery status display
Power-saving automatic switch-off

TECHNICAL DATA
General information
	Article number	3.510.205.157
Distance measurement
	Min. measuring range [m]	0.05
	Max. measuring range [m]	40
	Resolution	1 mm
	Typical measuring tolerance	± 2 mm
Laser
	Ø of the laser point at distance 10 [mm]	6
	Ø of the laser point at distance 20 [mm]	11
	Ø of the laser point at distance 30 [mm]	18
	class	2
	output < [mW]	1
Memory organisation
	Recall of previous measurements	20
Device control
	Push buttons	✅
	Membrane keyboard	/
	Touch	/
Housing design
	Plastics	✅
Power supply
	Internal (battery)	2 x 1.5 V, AAA
Ambient conditions
	Operation - min. temperature [°C]	0
	Operation - max. temperature [°C]	40
	Storage - min. temperature [°C]	-10
	Storage - max. temperature [°C]	60
Dimensions
	Length (packaging excluded) [mm]	82
	Width (packaging excluded) [mm]	56
	Height (packaging excluded) [mm]	85
Weight
	(packaging excluded) [kg]	0.29

STANDARD SCOPE OF DELIVERY
Standard scope of delivery
	Measuring device	✅
	Belt clip	✅
	Wrist strap	✅
	Battery(-ies)	✅
	Getting started guide	✅

ASCERTAINABLE MEASURED VALUES AND FUNCTIONS
Internal sensors
	Distance [m]	✅
	Distance [ft]	✅
	Distance [in]	✅
Functions and features
	Minimum value display	✅
	Maximum value display	✅
	Automatic switch-off	✅
	Backlit display	✅
	Pythagoras function	✅
	Non-stop measuring function	✅
	Area measurement	✅
	Volume measurement	✅
	Addition	✅
	Subtraction	✅
	Sounds	✅
